Atlantic & Yadkin Railway

History &
Modeling



A&Y #449

This locomotive had the following characteristics:

Construction year 1903
Construction number c/n 26201
Constructed by Pittsburgh Locomotive & Car Works
Southern Class J
Cylinder size (inches) 21"x28"
Steam pressure (pouind per square inch) 200 lbs
Driver size (diameter) 56"
Weight (in pounds) 171,550 lbs
Tractive effort (in pounds) 37,485 lbs

This was a class J Consolidation built in Pittsburgh (s/n 26201) in 1903 for the Southern Railway. The number was kept when it was leased by the A&Y. The lease started in January,1938 as replacement for #310. Delivered to A&Y on February 12, 1938, the 449 saw service until the last year of the A&Y's existence and was retired in June, 1950 according to R.E. Prince.

Photos:

AY449_Sanford_1938_Bowie

Click on the image to get a larger size.

James Bowie of New York  photographed the 449 in Sanford in August, 1938, but differs with Richard E. Prince on the class of this locomotive.  I believe that #449 was a class J. The photo is from David Bott collection.

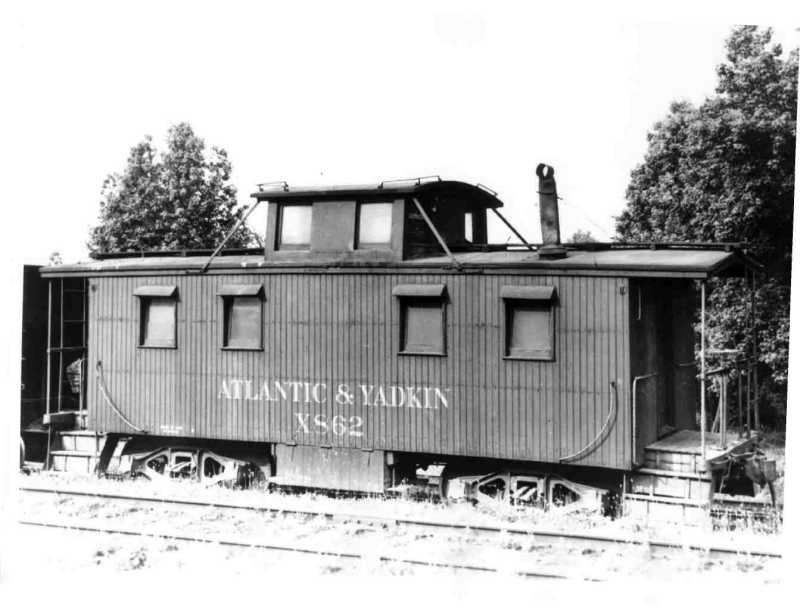

Note the A&Y lettered caboose. I thought I had a new cab photo, but when I enlarged the photo I was pretty certain that was 862 again (see the photo of 862 in a less pristine condition in the cab section of this website).
