A&Y 014

A&Y #14

 This locomotive had the following characteristics:

Construction year	1887
Construction number	c/n 3768
Constructed by	Rogers
Southern Class	B (maybe B-2)
Cylinder size (inches)	17"x24"
Steam pressure (pound per square inch)	145 lbs
Driver size (diameter)	56" (inside)
Weight (in pounds)	84,550 lbs
Tractive effort (in pounds)	13,790 lbs

This American Type 4-4-0 was built originally as CF&YV locomotive #14. It was sold to the Southern as part of the A&Y and eventually became part of class B. Under Southern ownership it may have started as A&Y #14, but was renumbered #1019 by 1903. In 1903, it was renumbered to #1807 to fit with other acquired B class locomotives. In 1907 to make room for new A-7 switchers, the class was renumbered from #1xxx to #3xxx and this locomotive became #3807.  It.was retired and scrapped in Spencer during January 1922.

 Photos:

No photo known for this locomotive.

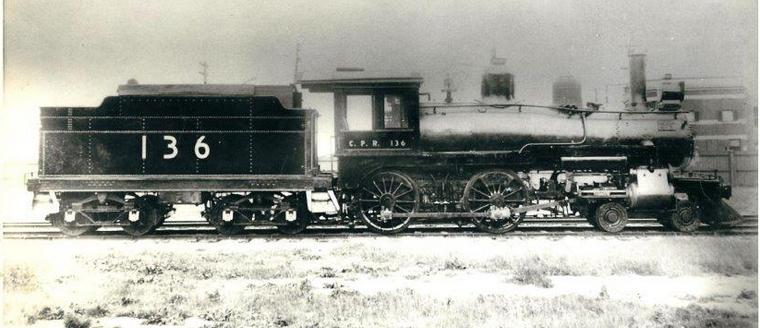

	As a Rogers (rather than Brooks) built locomotive, CFYV #8 photo I have would not be representative of #14. This photo of CPR 136 taken in 1914 (Steve Morris Collection), may be closer to how a modernized A&Y 14 may have appeared.
